AutoCAD Landscape Rendering: Why We Read the DWG Itself

We tested the picture route on a real residential concept plan, the kind a designer sends a client before the first site meeting. Both renders put the patio on the wrong side of the house. One added a driveway nobody drew. And the check that graded them scored both 88 out of 100, because it compared each render with the model's own reading of the drawing, which was wrong in the same way.

None of that is a rendering problem. It is a reading problem. A picture of a plan is a puzzle: which line is a wall, which hatch is a bed, which circle is a tree and how wide. A model solving that puzzle will sometimes solve it wrong, and confidently.

The same plan as an AutoCAD file holds everything the picture made us guess. Real units. A layer for every kind of thing: buildings, walks and patios, the driveway, plant beds, fences, trees, labels, spot grades. Every tree, shrub, boulder and chair placed by name, with its size. Nothing has to be read off pixels.

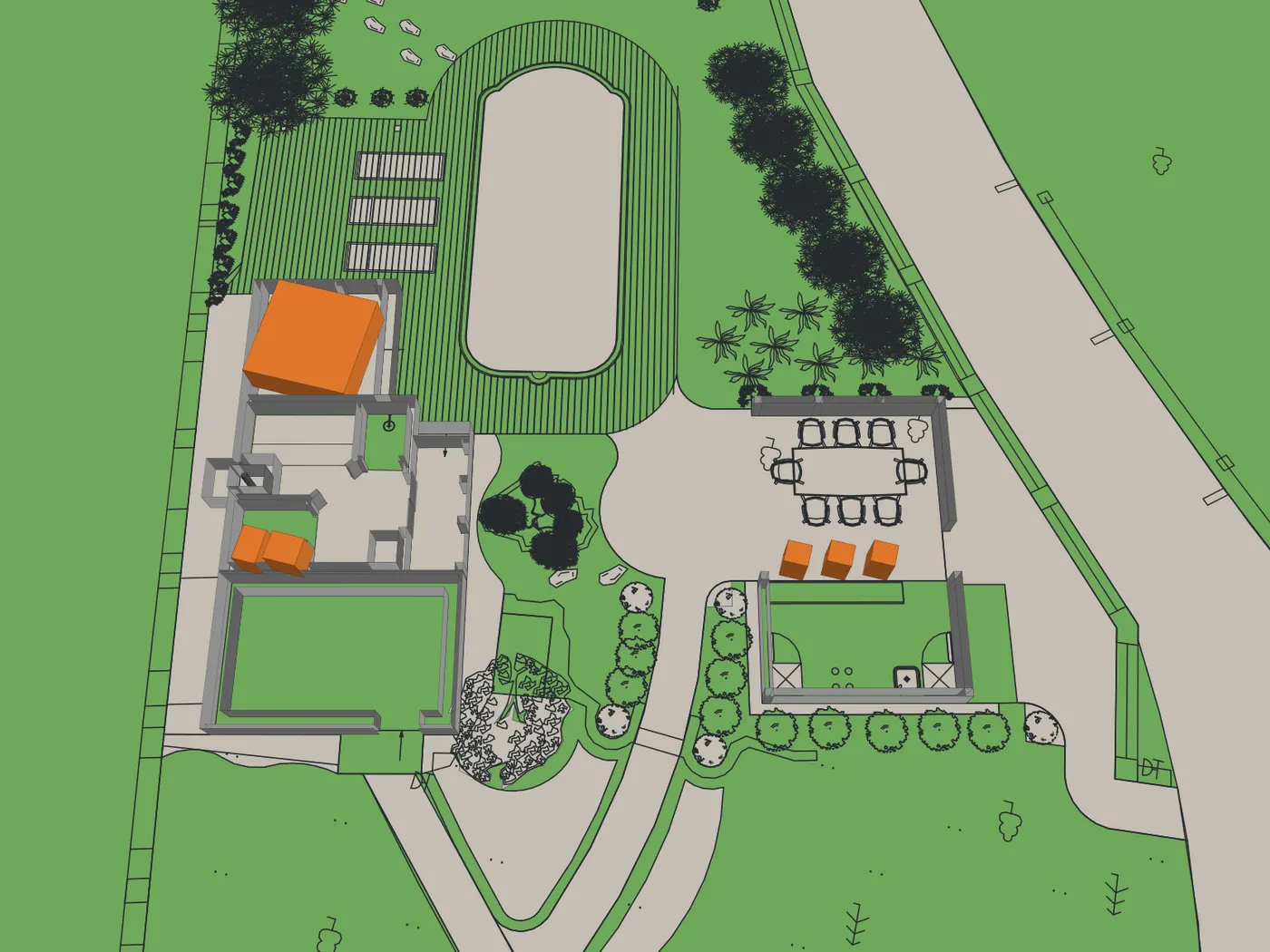

So CAD ↔ Photo never asks a model what the drawing says. Hadaa reads the file, closes the regions the lines bound, names each one by what is inside it first — its hatch, a label written in it, the plants drawn in it — and only then by its layers, and builds the garden as a 3D model you can turn, slide and zoom. Then it pictures that model from each camera, and the image model is handed those pictures as fact. It decides what the paving looks like. It never decides where the paving is.

What the file says, it keeps: a label that gives a height, a size or a material, a roof drawn as a roof plan. What the file does not hold, we say so. Most things have no stated height, so heights are assumed from what each thing is, and every assumption is listed before you spend a credit. A file that doesn’t say its units asks you which. The surfaces the file leaves open are the render's to choose, steered by your brief.

Because each render is an edit of a picture of the 3D model built from your file, it lines up with that picture. That lets us check it without asking a model's opinion. Then everything in view is measured where you drew it: the roof, driveway, bare pad, paving, trees, water, burgundy tree, green tree, shrubs, flowering plants, planting beds, deck, stoop, house walls, fence, low walls and boulders, stepping stones, furniture, fire pit, edging, column, structure, water feature, gravel, hard surface, open ground and lawn. Every tree, burgundy tree, green tree, shrub, flowering plant, fence, stepping stone, piece of furniture, fire pit, column, structure and water feature is looked for on its own, so one that’s missing is named. A render that is off is made again from scratch, up to 3 times at no extra cost. Those re-renders are ours to pay for, not yours.

The verdict is shown under every render: how many things are in place, and what’s off. If no attempt passes, the closest is still delivered, marked “Failed check”; one we couldn’t measure is marked “Not checked”.

And because a drawing is not a photograph of the site, there is Walk around: choose one of your own site photos, drag where you stood on the plan, and the design is rendered into that photograph. The house stays as you photographed it; the garden becomes the one you drew. A walk around isn’t checked against the drawing, since what lies beyond the design comes from your photo.
